Create/edit UCS
|
The command is available in the UCS & positioning Top Toolbar tool. |
|
The Create/edit UCS command allows you to create a new UCS (by pressing
|

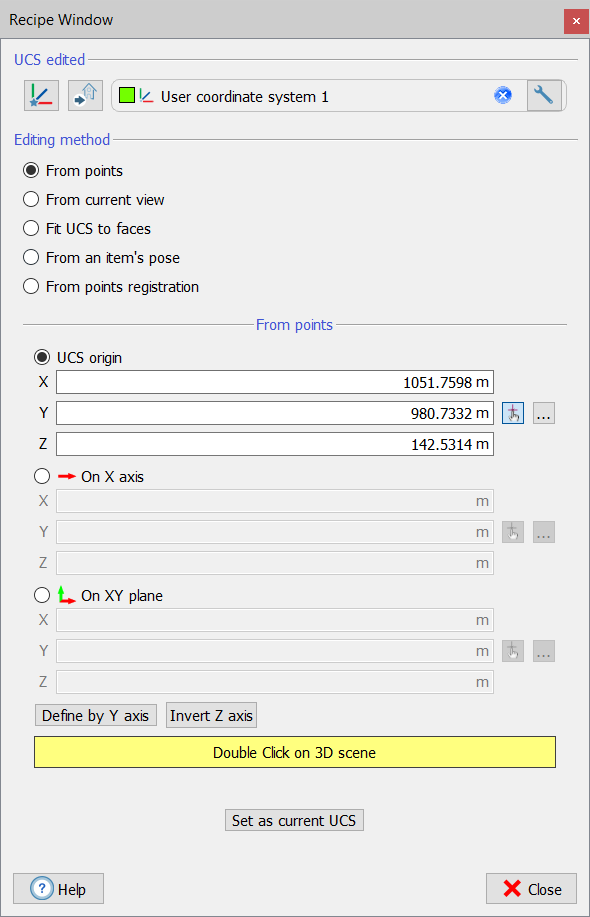

Editing Methods
Five methods are available to create and modify an UCS.
1. From points
The UCS is here defined by setting 3 points in the 3D space:
- UCS origin
- a point on the X (or Y axis)
- a point on XY plane
These points can be selected directly by double clicking on the 3D scene, chosen between the Points listed in the project or identified by manually entering their coordinates.
At the end of the process it is possible to invert the Z direction.
2. From Current view
The UCS is adapted to current view, with the origin in the point of view's origin, the Z axis oriented towards your eye and X, Y axes parallel to the 3D window edges.
3. Fit UCS to faces
The UCS is here created by selecting portions of the point clouds to define both the UCS's XY plane (horizontal) and the UCS's XZ plane (side).
To do it the lasso command is used to select the points on a "flat" [suggested] surface.
This method is particularly useful when you have to create an UCS whose planes are parallel to the floor and walls, in order to extract orthophoto, cross sections, ....
Check that your points sample is large enough so you don't make any serious mistakes.
4. From an item's pose
The UCS of the desired item is cloned. Drag&Drop the item in the dialog or double click on it in the 3D scene.
5. From points registration
The UCS is created from two sets of points.
See Create UCS from point list.
At the end you can choose to set the just created/modified UCS as current in the project, by pressing the Set as current UCS button.
