Measures
Reconstructor® provides different tools to take measurements in the 3D space, as annotation, distances, angles, area and volume computations.

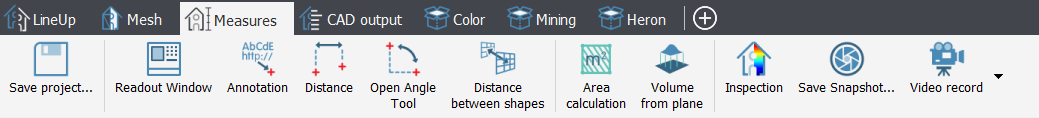

In Reconstructor® some basic measuring features are available:
|
|
Readout window The readout window allows you to see the 3D coordinates of the points you are hovering the mouse on in the 3D rendering window. |
|
|
Annotation This function allows you to create annotation of 3D points of models in your project. |
|
|
Distance This button allows you to measure a distance between any two points in the 3D scene. |
|
|
Open Angle Tool This button enables you to measure and angle between three points in your 3D scene. |
|
|
|
|
|
Area and Volume To take measures as:
|
|
|
Inspection It is a procedure to compare two different shapes and to measure their differences. |
|
|
Save snapshot This function allows you to capture a snapshot of the main viewport with its rendered models. You can save the captured snapshot in a variety of image formats, including Bitmap, Jpeg and PNG. |
|
|
Video record To acquire and save video navigating in the 3D window. |
More details at Measures & Notes.
