Manage points and shapes

Manage points

By Alt + Left Double Mouse clicking you can pick a point on a model and save it in the "Picked Point" list.

It is possible to import a point list from a text file: File menu -> Import a list of points...

Collected points can be also used to fit primitives, draw polylines or convert point to targets.

Manage Points

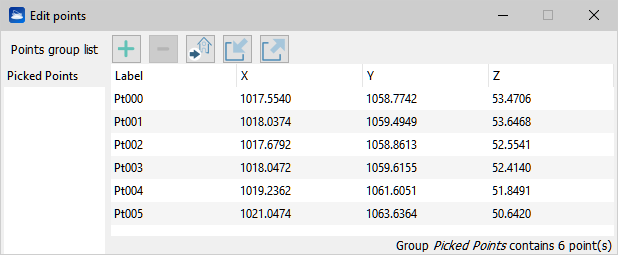

Edit point list
Export point list
Polyline from point list
Fit shape to point list

Primitives (planes, cones, cylinders, spheres, circles) can be created by a robust fitting algorithms. An accurate fitting reports is also provided.

Basic Shapes

Create/edit plane
Create/edit segment
Create/edit polyline

Second Order Shapes

Create/edit circle
Create/edit sphere
Create/edit cylinder
Create/edit cone

Shapes Interactions

Minimum distance between fitting primitives can be quickly calculated; bridge clearance, building heights, poles/pillars inter-distances, tank diameters can be easily extracted.

Fitting primitives can be intersected providing precise polylines.

Distance between shapes
Intersect geometric shapes
