Online Help Reconstructor 4.4

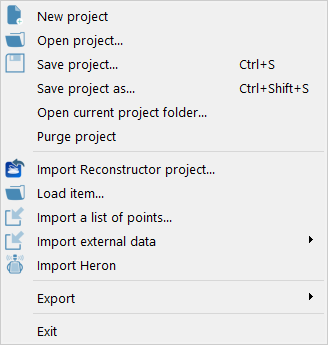

PROJECT MANAGEMENT

• New project: every project is organized in a folder that groups data by model structure and object type, thus the following dialog allows to create and select a folder for the project
• Open project: opens an existing project (*.recprj format)
• Save project [Ctrl+S]: saves the current project
• Save project as [Ctrl+Shift+S]: saves a copy of the project with a different name
• Open current project folder [1]: opens the folder including the current Reconstructor® project
• Purge project: can empty the "Trash" project's folder, erase the temporary files, the orphaned item files (badly connected with the project) and backup data.

IMPORT

• Import Reconstructor project
• Load item
• Import a list of points: imports a .txt file as a list of points inside the project
• Import external data: imports data from third party formats

• Grid Point Clouds
• Triangle Meshes
• Unstructured Point Clouds
• Polylines/Trajectories
• CAD Models
• SCENE Projects
• Riegl Riscan Projects
• ZF Projects
• Topcon Projects
• Leica HDS pictures
• Nctech images

• Import Heron: imports Heron® data

EXPORT

• Export model as
• Export polyline as
• Export cross section as
• Export UCS to AutoCAD
• Export annotations
• Export pose
• Export to Autodesk ReCap®
• Export point list
• Heron Export
• Export 3D Panorama
• Publish to GoBlueprint

Exit: quits Reconstructor®. If you have unsaved changes to your projects, Reconstructor® asks you if you what to save the changes or not before exiting.
